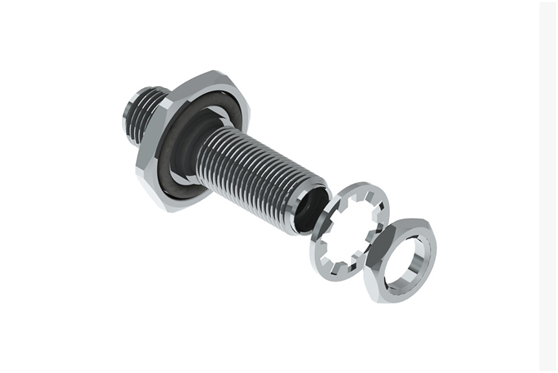

KTRAV-FC-M10

KTRAV-FC-M10



Pressure

from vacuum to 600 bars

Hermeticity

10^-8 mbar.l/s

Sealing technology

epoxy

Housing material

stainless steel 304L

Panel drilling diameter

10.2 mm ^0/+0,3

Panel thickness

5 mm min.; 20.5 mm max.

Tightening torque

7.5 Nm max.

Adapter interface

FC/PC

Fiber type

SM, MM GI50, MMGI62.5, MM SI with 125 μm cladding

Insertion loss

< 1 dB max. @1300 nm (0.3 dB typ. @1300 nm on SMF128)

Operating wavelength range

200-2000 nm; depending on the fiber

Operating temperature range

-55°C to +125°C

Storage temperature range

-55°C to +170°C
